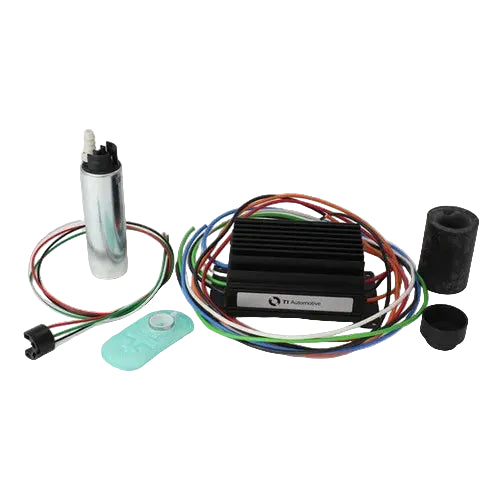

TI Automotive brushless fuel pump and controller

From TI Automotive:

TI Automotive’s new in-tank brushless fuel pump utilizes advanced technology for maximum reliability and efficiency. The result is a next-generation pump for any type of engine offering precise control of fuel pressure, lower current draw, reduced heat and less noise.
Supporting up to 1000+ HP (gasoline) or 800HP (ethanol), the BKS100 provides more power, more torque and more speed. Matched controller with simple power and ground operations for easy maintainability. The controller features sealed electronics for weather resistance.

Fuel: GAS or FLEX
Horsepower: 1000 gas or 800 flex
Flow Rate (lph): 550
Pressure (psi): 40

From ATR Performance:

ATR is located in the Phoenix area, and as such – We experience very warm temperatures (Often in excess of 110 degrees F).  We’ve run every different variety of fuel pump and hanger setups and found flaws in most.  The R35 fuel tank is located above the transmission and exhaust, and fuel is known to get quite warm in the summer months.  In addition to this, many brushed pumps such as the Walbro 450 and 525 heat the fuel even more.  In fact, ethanol can get hot enough to boil inside the R35 fuel tank.  This results in fuel cavitation, engine cutting out, and eventual fuel pump failure.  When we installed two TI Automotive BRUSHLESS fuel pumps and controllers, using a Radium Engineering hanger (sold separately) – We were able to cut the fuel temps by a minimum of 15 degrees F and have never experienced a fuel pump failure in over 3 years of use with this setup.

One brushless pump will support 800HP on ethanol, while two pumps fitted on a Radium hanger will support 1500HP.  You will also need to purchase two Radium fuel pump hardwire/Relay kits to complete installation.  We mount the brushless controllers behind the passenger side B pillar trim – right next to the fuel tank opening.  Please contact us for detailed installation instructions.  These controllers are FAR MORE reliable than the small RC car controllers sold by other companies.  Purchase with confidence

RADIUM HANGER AND HARDWIRE KIT WILL BE REQUIRED TO COMPLETE THIS INSTALL.  Our custom fuel line kit is highly recommended as well, to feed all of this fuel to the engine and back to the tank
