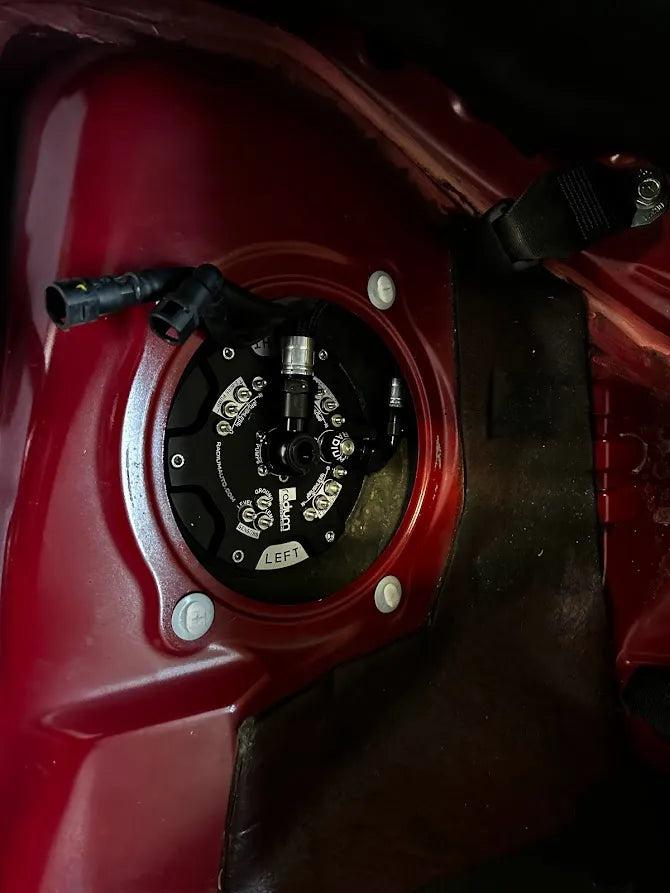

This kit was specifically designed to fit the Radium fuel pump hanger. Our -10AN feed line and -6AN return lines will support 1500+ horsepower on ethanol. We’ve added a 10 Micron serviceable fuel filter right before the fuel rails as well, to catch any small debris before it hits your fuel injectors. These lines are made of a super light weight material and are compatible with all gasoline and alcohol based fuels. This kit is fully fabricated and ready for install. Parts included are:

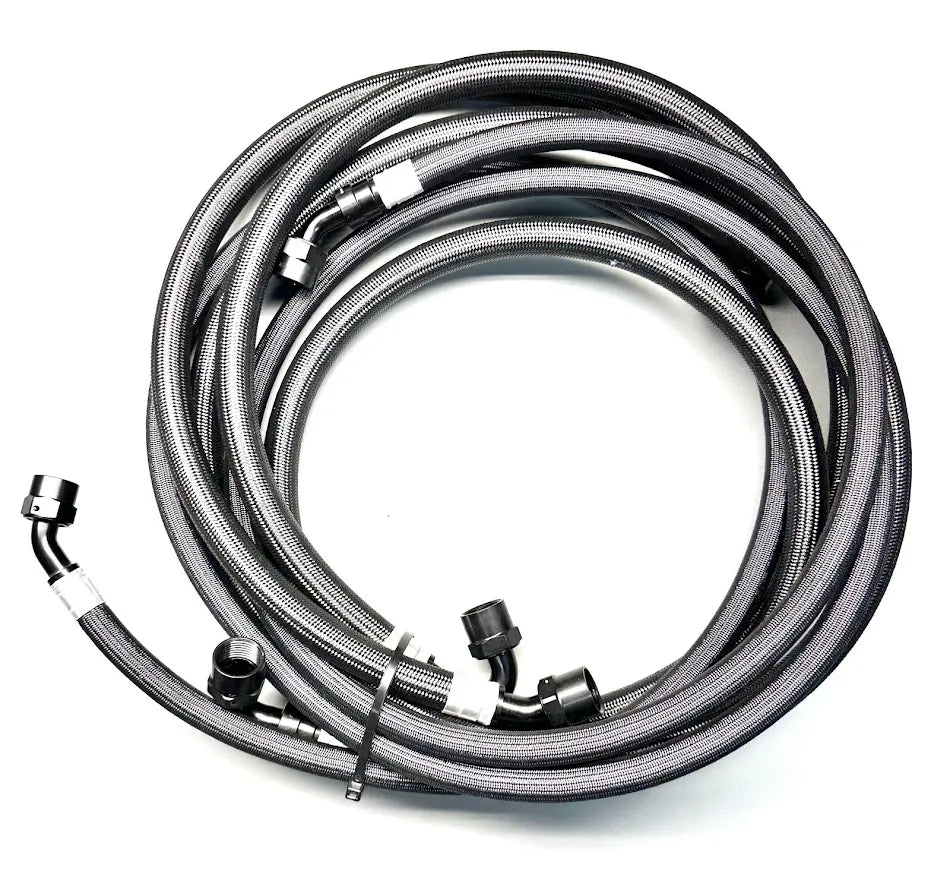

- -10 Fuel feed line from top of fuel tank to fuel filter at batter compartment
- -10 Fuel feed line to 6 or 12 injector fuel rail setup
- -6 Fuel return line from flex fuel sensor to fuel tank (We mount our flex sensors underneath the battery in battery compartment – Message us for more info
- 10 Micron Weldon 10GPM fuel filter
- Fuel filter bracket
- Radium fuel line retainer kit for underneath vehicle
- Weldon 10GPM adjustable fuel pressure regulator
This kit does not include the line from fuel rails to pressure regulator or flex sensor – There are too many different configurations on the market for this. Message us with custom requests, in order to complete this kit.
These lines may take up to 2 weeks to produce.
Add Boost Logic fuel rails, Fuel pressure monitor kit, Radium hanger, and two brushless fuel pumps for a complete fueling solution.
